A Beginner’s Guide to DJI RS 5

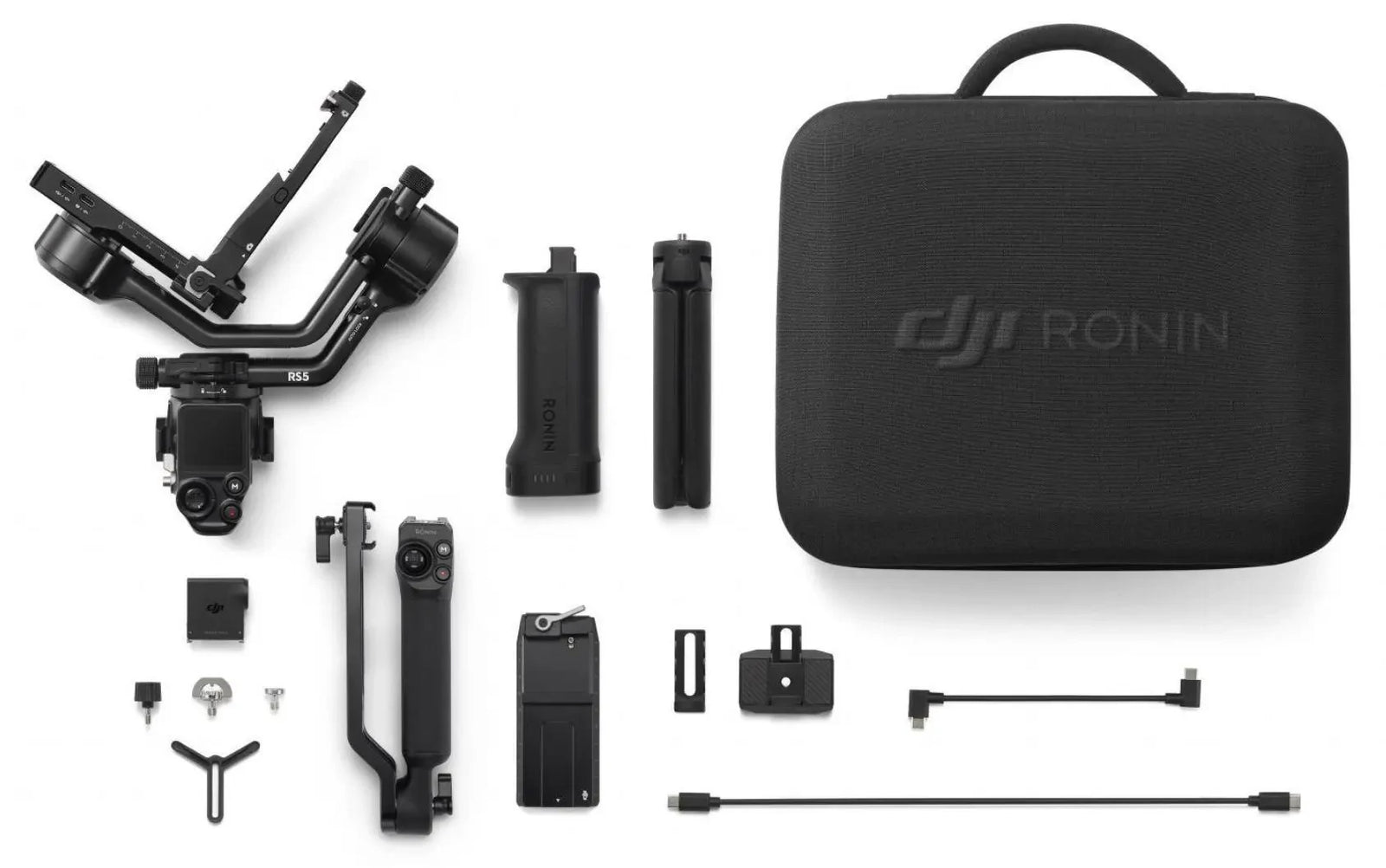

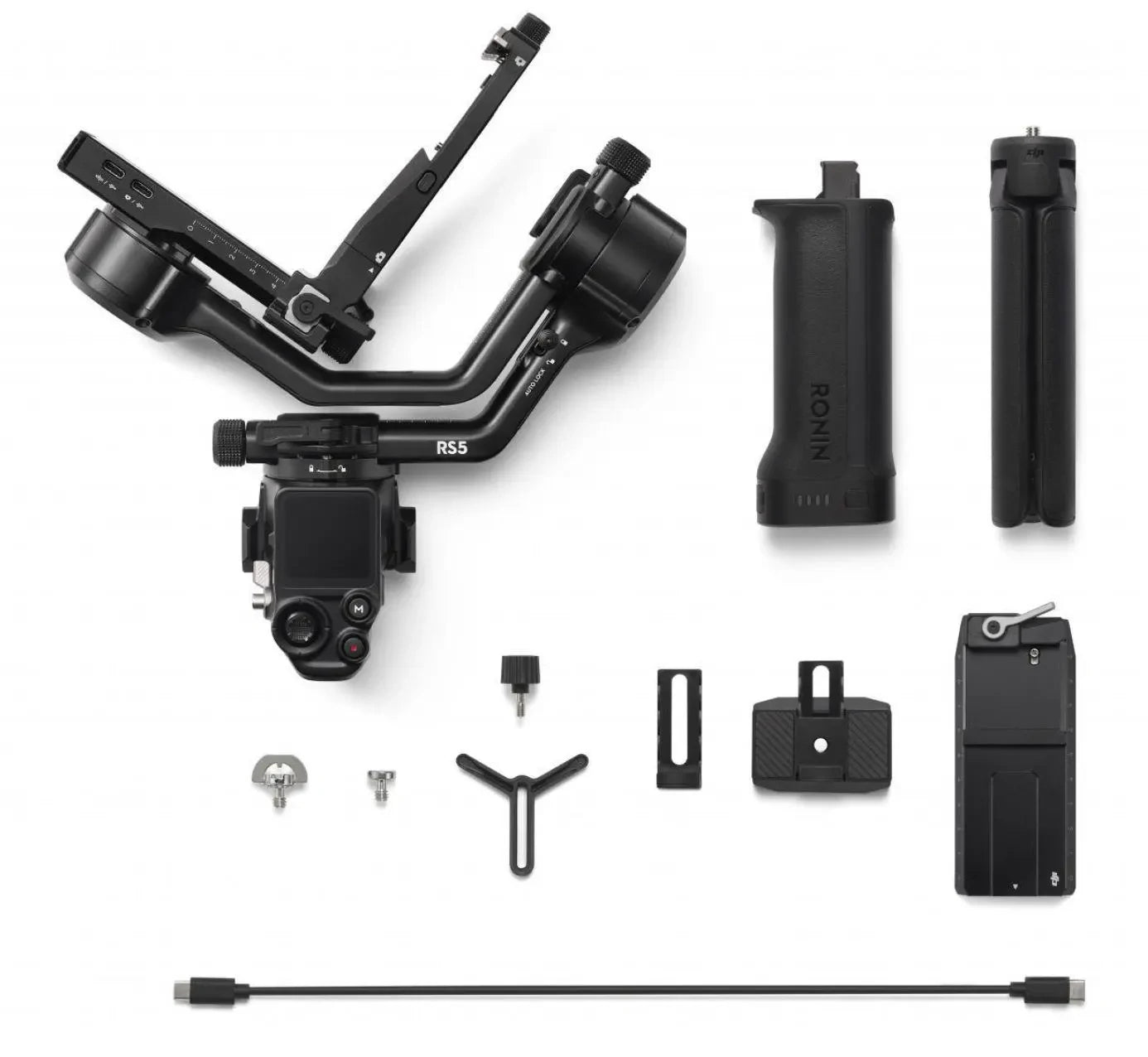

Unbox your package to discover the product and accessories. Ensure everything matches the checklist and is in perfect condition. Check out the image below for more details.

DJI RS 5 supports a maximum payload of 3 kg. Ensure your camera, lens, and accessories do not exceed this limit.

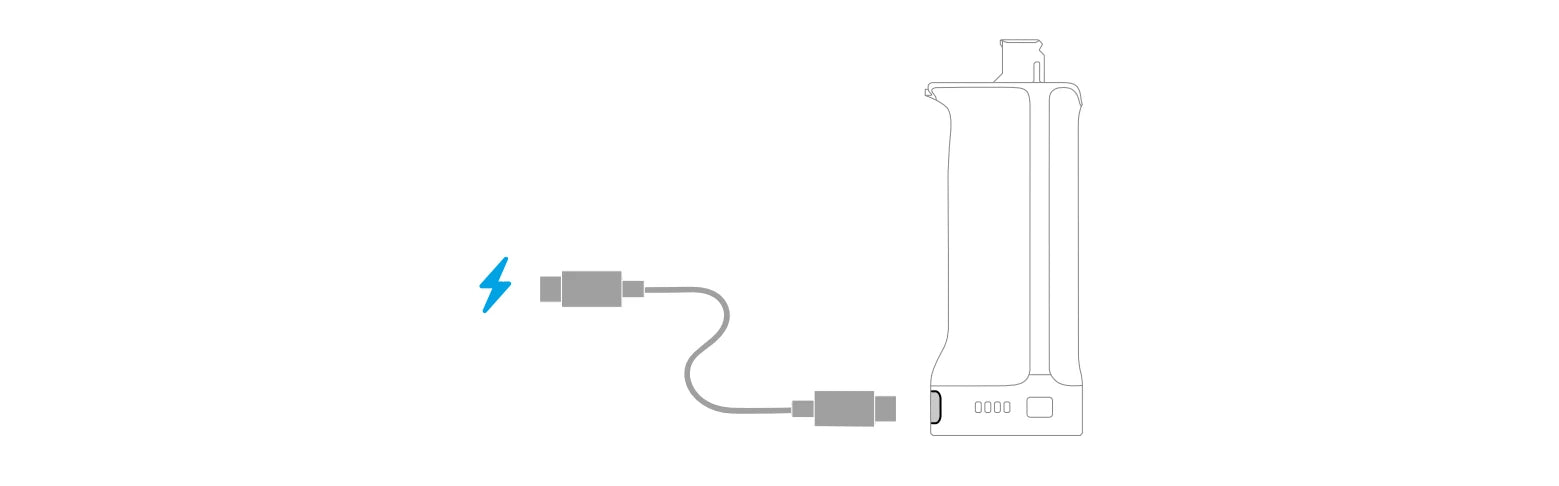

Charge the battery for activation before first use. Activation is complete when the battery level indicators turn on. When the device is off, press the battery level button to view the current battery level.

① Mount the extended grip/tripod to the battery grip and unfold the tripod.

② Mount the gimbal onto the grip, listen for a click, then press down on the grip mount, and tighten the grip level.

· Unfolding the Gimbal

Move the roll and tilt locks to the unlocked position respectively and unfold the two axes, then lock the axes to continue to the next step.

· Mounting the Camera

Ensure the gimbal is powered off before mounting the camera.

Horizontal Shooting

Vertical Shooting

· Balancing

For optimal image stabilization and gimbal performance, balance the gimbal before use.

Activate DJI RS 5 by using the DJI Ronin app. Download and install the DJI Ronin app first.

Press and hold the power button to power on the gimbal, then open the DJI Ronin app, and follow the on-screen instructions for connection and activation.

When the DJI Ronin app shows that new firmware is available, follow the on-screen instructions to update the firmware for optimal performance.

On the touchscreen home page, tap the Auto Tune icon, or press and hold both the M button and the Trigger button to start automatic calibration. The gimbal automatically adjusts motor stiffness according to the payloads to ensure optimal operation.

DJI RS 5 offers two shutter connection methods: Bluetooth or wired connection by using a camera control cable.

Bluetooth Connection

Wired Connection

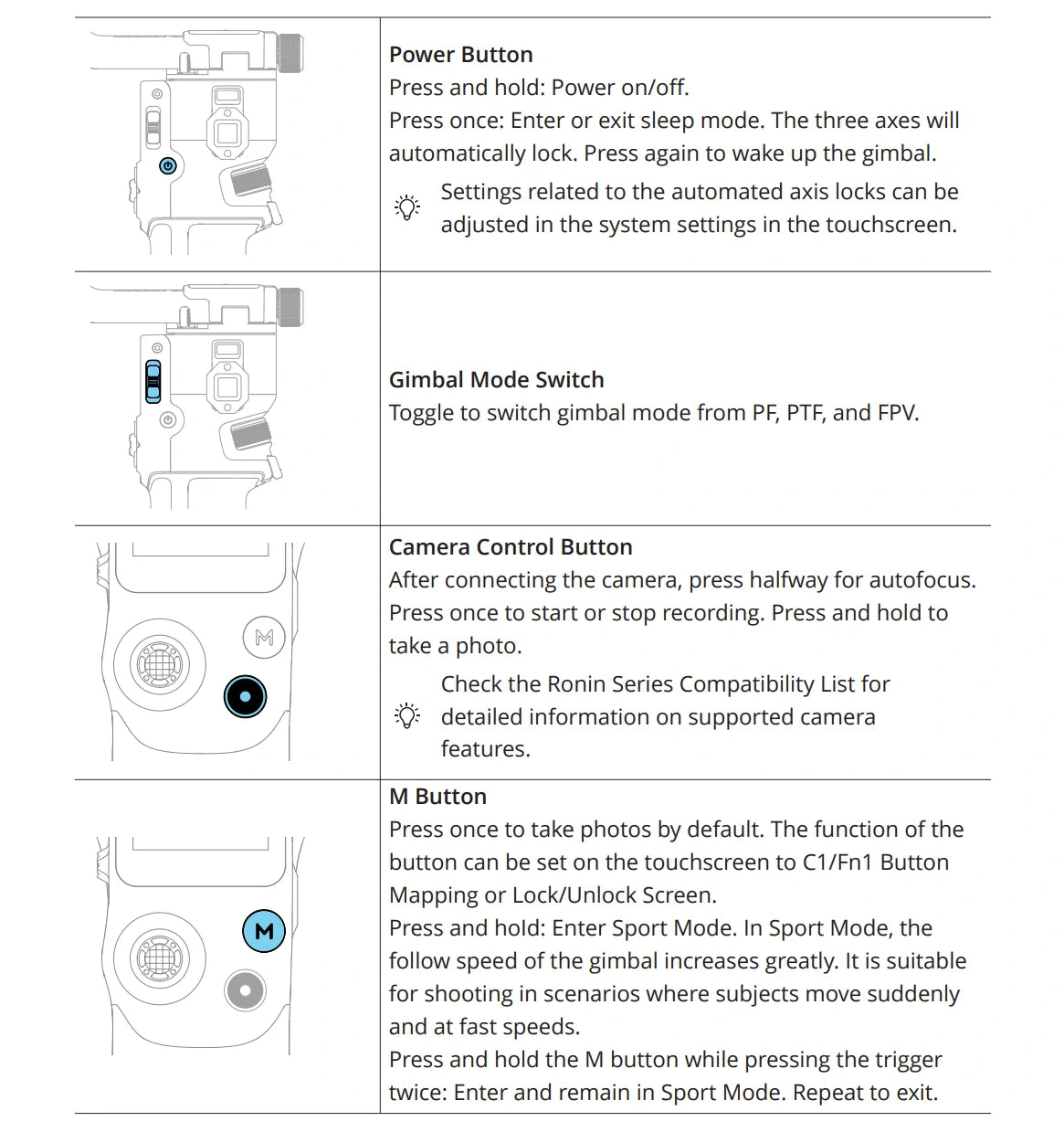

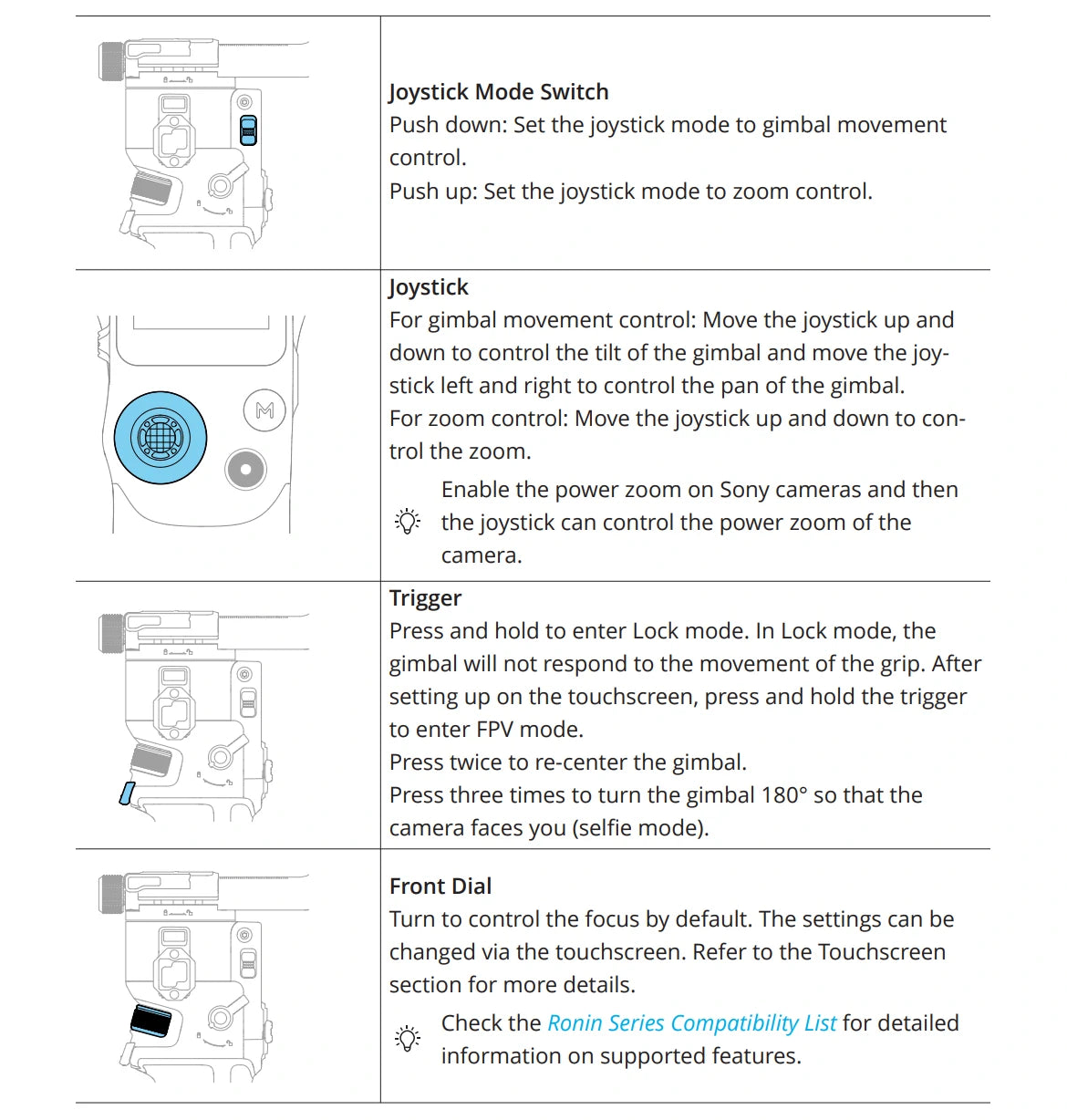

·Buttons

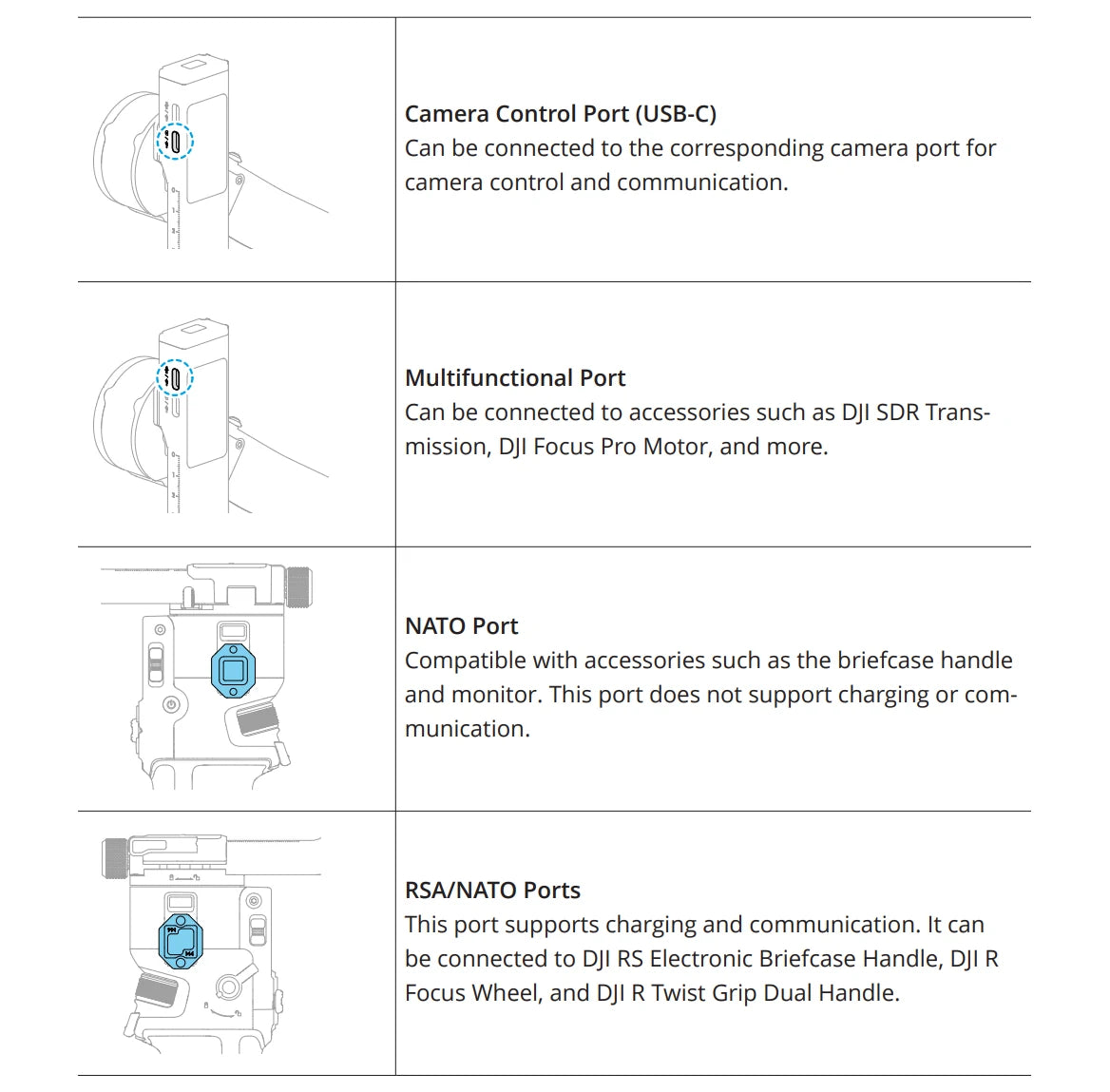

·Ports

Watch the video to learn how to navigate the DJI RS 5 touchscreen menus and adjust parameters.

You can use Create, the intelligent shooting feature, and other tools through the app. In addition, you can set the motor parameters and user profile, and check system status.

The tracking module supports tracking people, vehicles, pets (cats and dogs), and other objects. For different tracking object types, you can use different methods for controlling following and shooting.

Use the buttons on the electronic briefcase handle to control the gimbal and the camera.

·Camera

·Lower Quick-Release Plate

·Battery Grip

If the product malfunctions due to non-user error during the warranty period, click here to apply for free repair service. Please refer to Warranty Period of Main Parts.

· What is the battery life of DJI RS 5?

A: Up to approximately 14 hours of standby time*.

* The data is obtained with the gimbal balanced and stationary. When the gimbal is in motion, the operating time will be reduced.

· Does DJI RS 5 support charging while in use?

A: Yes.

· Is the electronic briefcase handle compatible with other gimbals?

A: It is only compatible with DJI RS 5.

For more information about the product, please refer to the user manual.
