DJI RS Intelligent Tracking Module

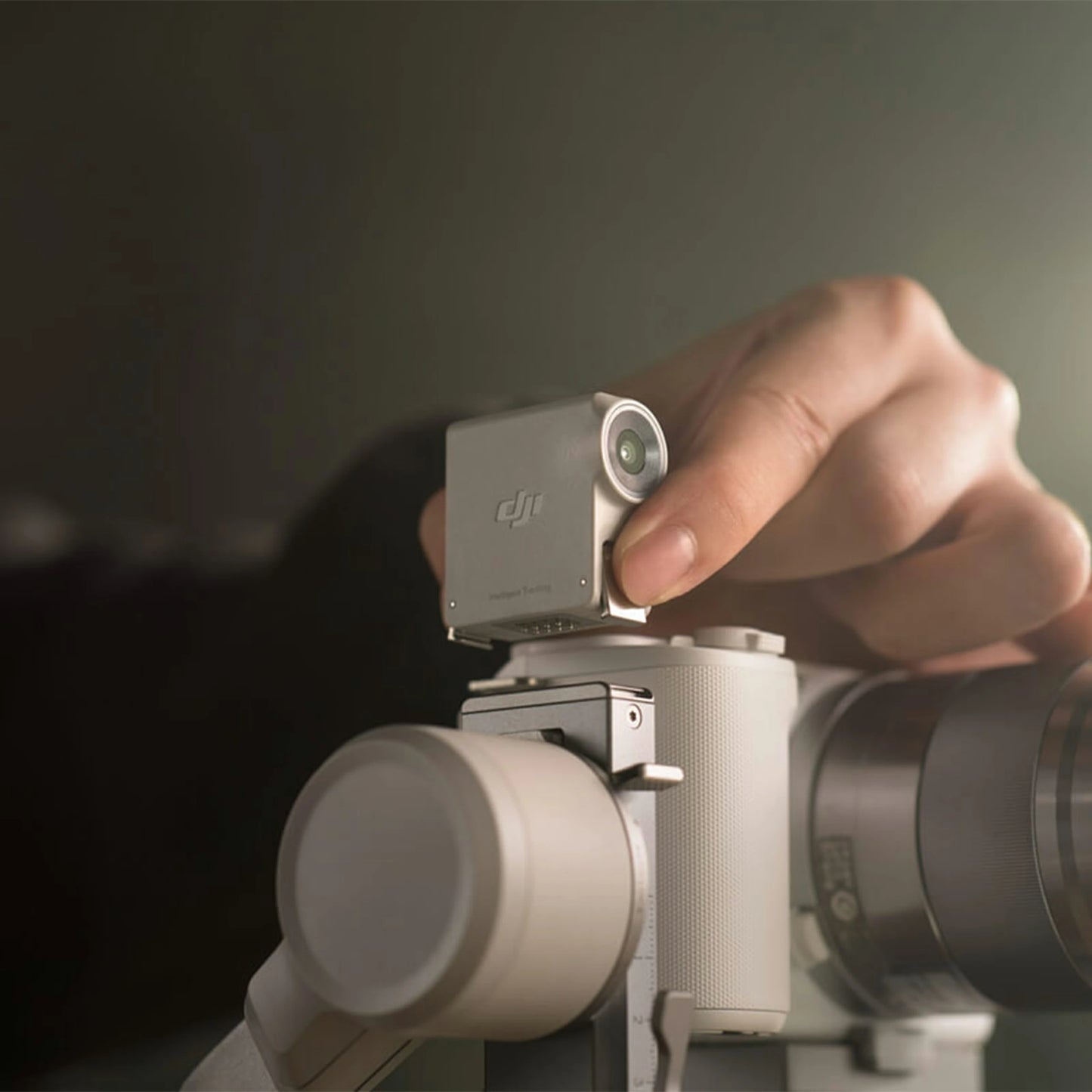

The RS Intelligent Tracking Module features a magnetic quick-release design, ensuring easy and secure installation. Made of plastic, it weighs only 19 g. It can be mounted on the gimbal to achieve intelligent tracking and composition of the subject. It not only can assist you in capturing smooth orbit and follow shots, but can also facilitate solo fixed-position tracking, acting like your assistant in scenarios like selfies and live streaming.

The bottom of the RS tracking module uses a magnetic locking design. Press the latches and attach it instantly to DJI RS 4 Mini. With the Adapter Mount, it can also be mounted on and used with DJI RS 4 Pro or DJI RS 4. Please note that using the Adapter Mount will occupy the gimbal's RSS port, so the camera control cable cannot be used.

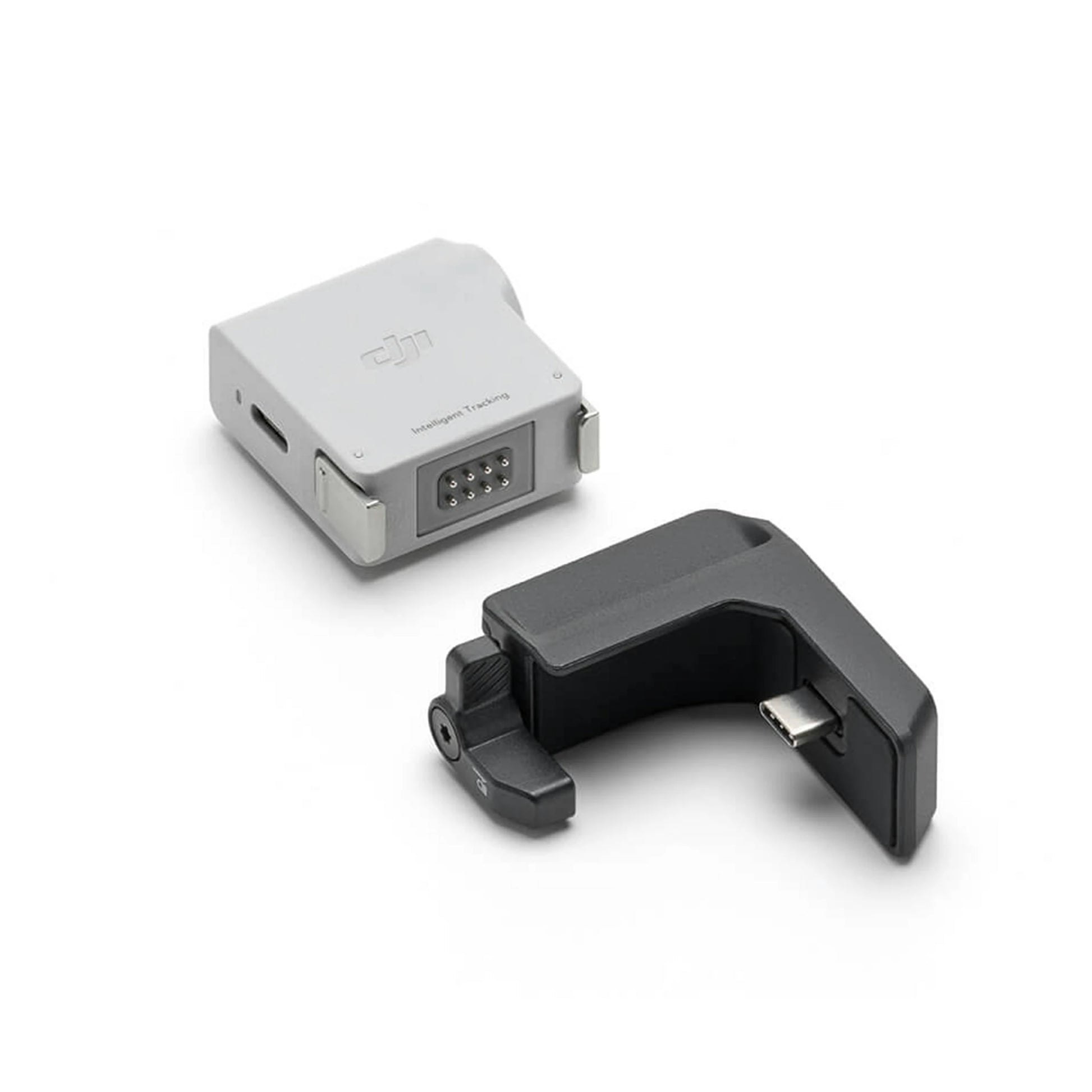

RS Intelligent Tracking Module × 1

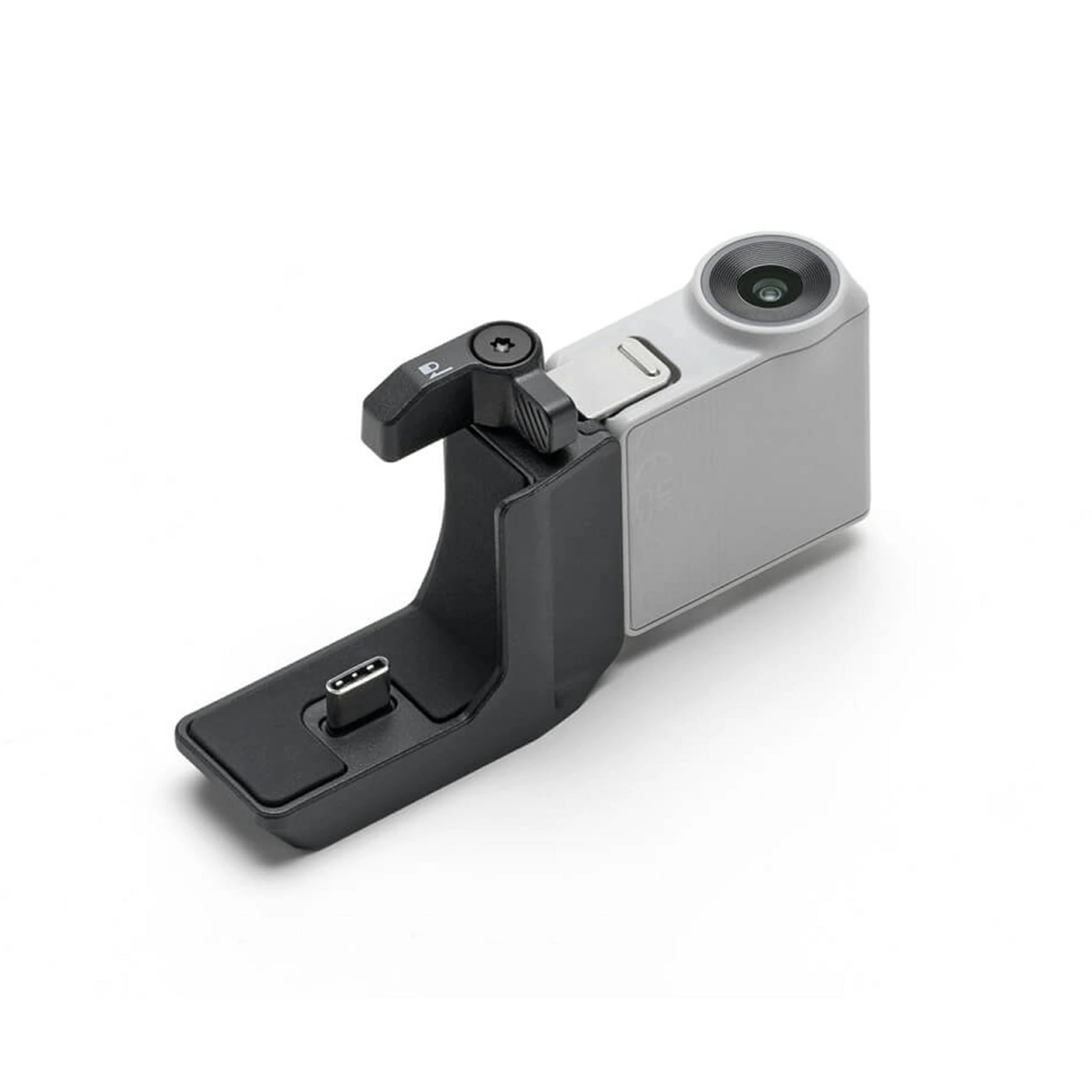

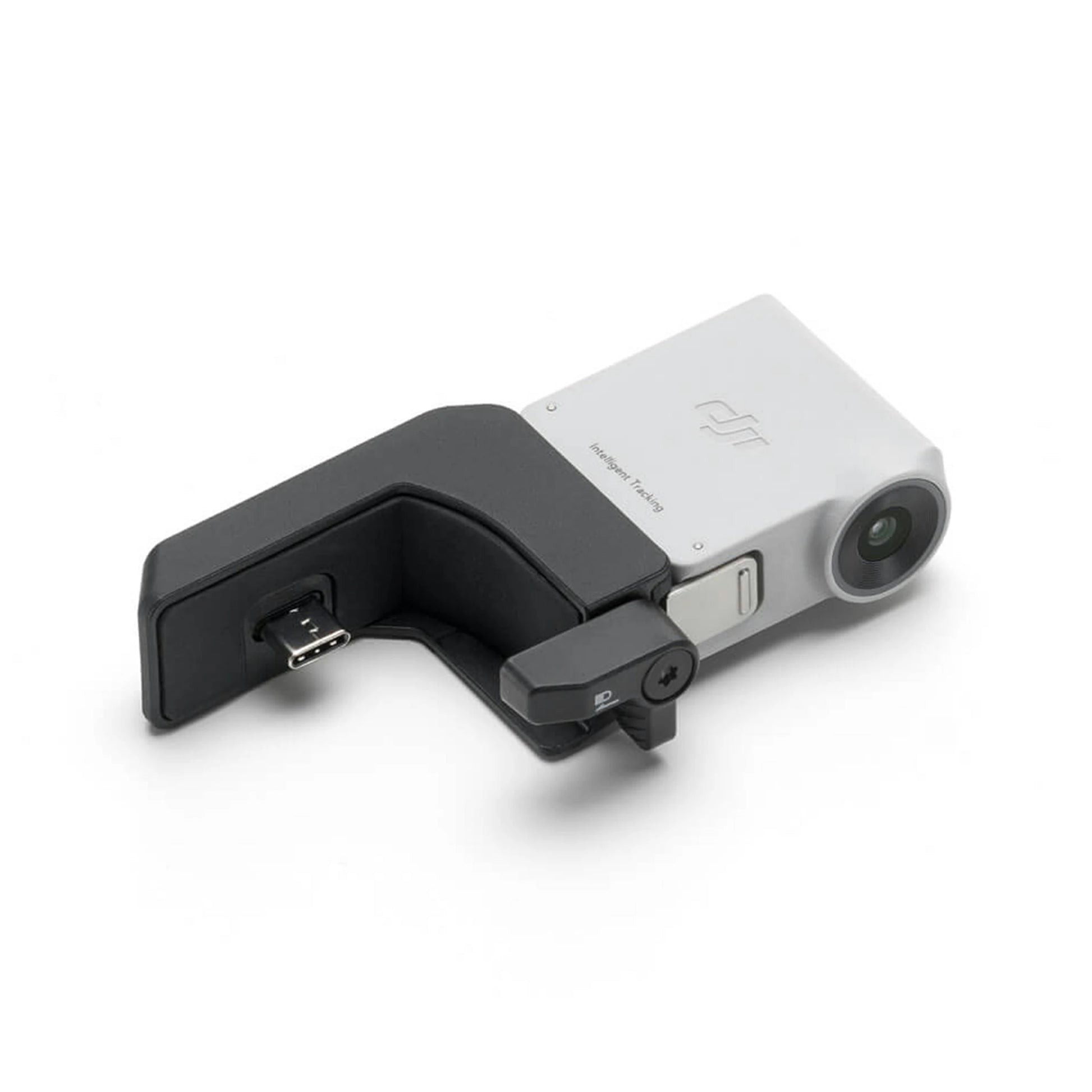

RS Intelligent Tracking Module Adapter Mount × 1

Weight: 19 g

Dimensions: 33.5×17.5×38.5 mm (L×W×H)

Tracking Distance: 0.5-10 m

Operating Environment: Illuminance > 20 lux

Trigger Modes: Gimbal trigger, gesture

Gesture Functions: Start/stop of tracking, start/stop recording, framing adjustment

Power Consumption: < 1 W

Operating Temperature: -10° to 45° C (14° to 113° F)

Mounting Method: Magnetic attachment
