A Beginner’s Guide to Osmo Mobile 8

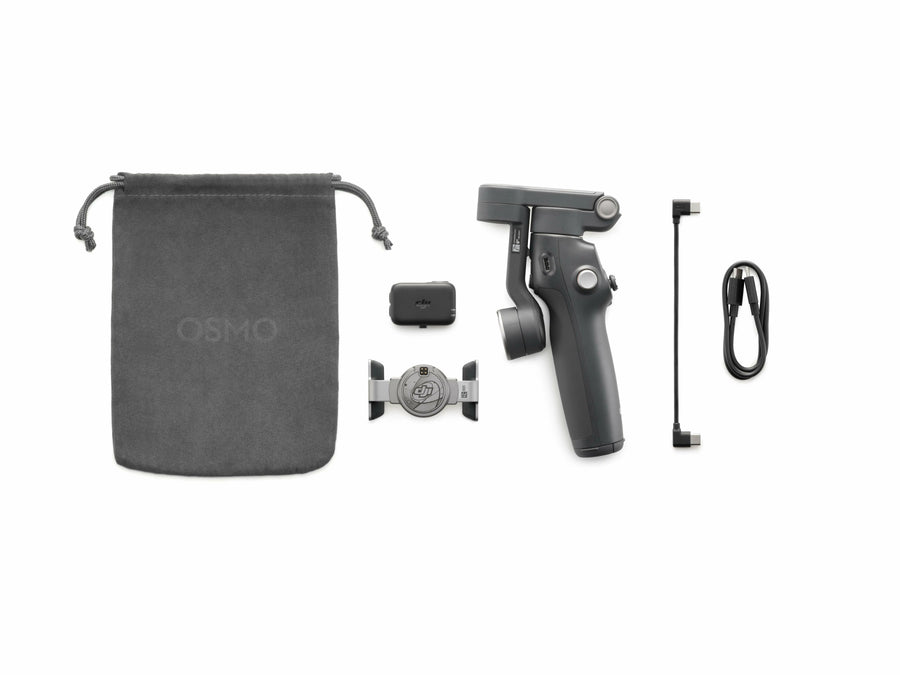

Unbox your package to discover the product and accessories. Ensure everything matches the checklist and is in perfect condition. Check out the image below for more details.

Osmo Mobile 8 is compatible with most mainstream smartphones on the market. It is recommended to use smartphones with a width of 67-84 mm, thickness of 6.9-10 mm, and weight of 170-300 g.For the full list of compatible devices, head over to the DJI official website and check out the smartphone compatibility list.

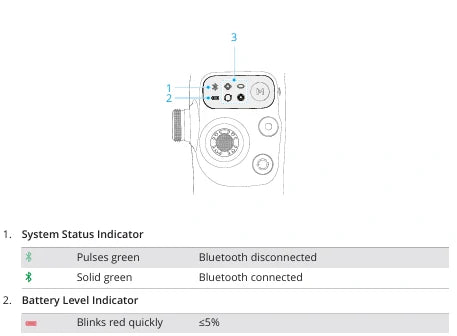

Please use the included charging cable to charge the gimbal until the power indicator turns off.

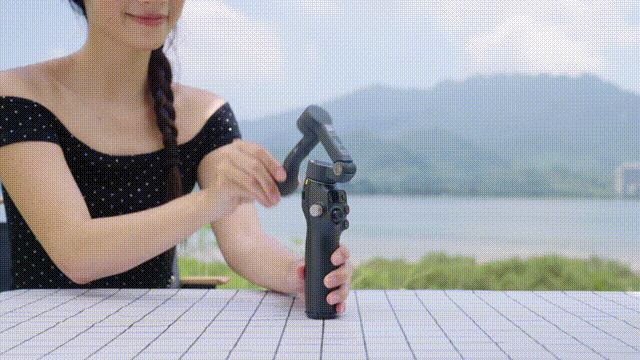

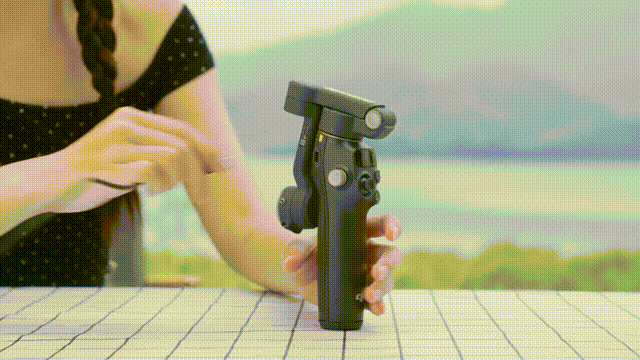

Unfolding: Unfold the gimbal, and it will automatically power on.

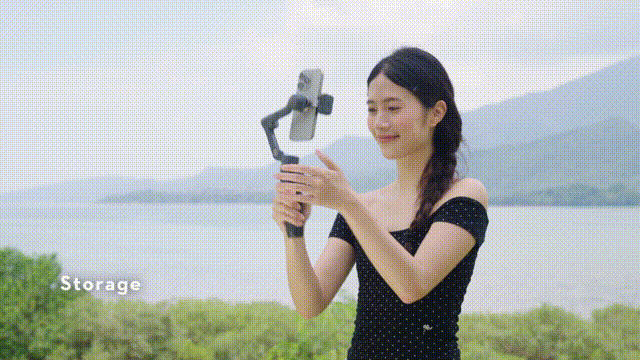

Folding: Press and hold the M button, and the gimbal will automatically rotate to a foldable position and power off.

① Pull out the built-in tripod and place it on a stable, level surface.

② Mount the phone holder in the middle of the phone, ensuring the phone camera is facing the correct direction.

③ Align the magnetic mount and attach your phone to the gimbal. The mode light will light up, and the gimbal will begin stabilizing your phone.

Download and open the DJI Mimo app, enable Bluetooth on your phone, and connect your Osmo Mobile 8 to your phone.

A prompt will appear in DJI Mimo when new firmware is available. Follow the on-screen instructions to update the firmware.

The following features are based on DJI Mimo.

Osmo Mobile 8 supports low-angle shooting, making it easy to capture unique angles and bring more creativity and a sense of closeness to your footage.

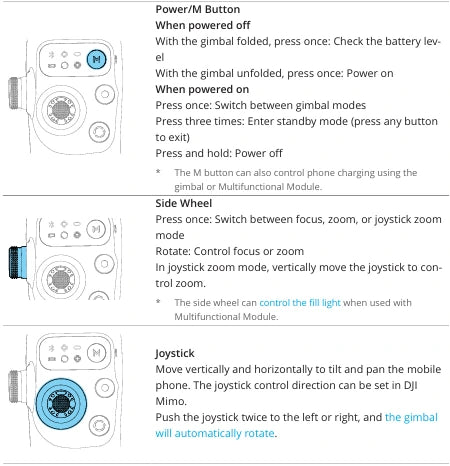

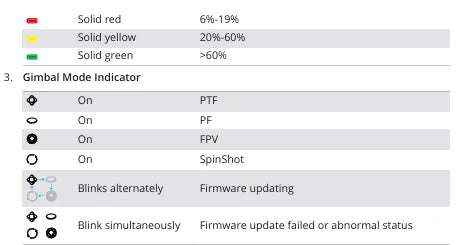

Upon powering on, the gimbal defaults to PTF mode. Press the M button once to switch to PF, FPV, or SpinShot modes. Quickly adjust the gimbal to match your needs and capture every exciting moment.

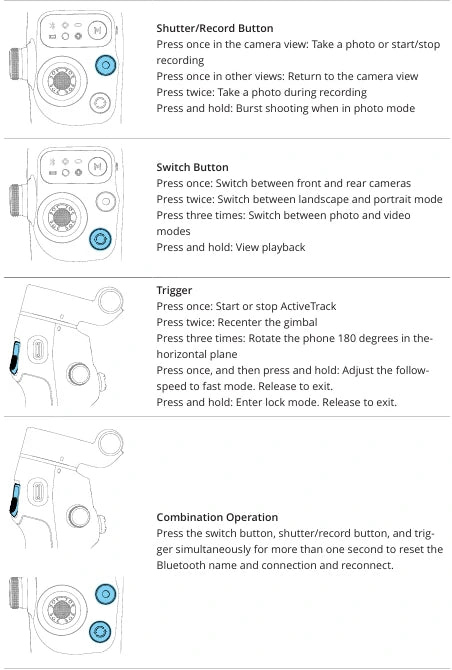

Enable ActiveTrack in the DJI Mimo app, and let the gimbal expertly control your phone to precisely track people or other subjects. Experience the freedom of capturing moments as if you have a personal photographer by your side, wherever you go!

iPhone users do not need to mount the multifunctional module. You can enable tracking directly in the system camera or third-party apps to keep people centered in the frame.

You can use DJI Mimo on an Apple Watch to view the camera feed, control the gimbal, and enable ActiveTrack remotely. Enjoy unmatched convenience in capturing your moments. (The tutorial video takes OM 7 Series as an example.) Check the watch compatibility list.

Using with Multifunctional Module unlocks enhanced lighting, audio recording, and other functions, elevating the quality of your video recordings to new heights.

If you have purchased the magnetic quick-release mount, effortlessly attach your iPhone to the gimbal for a streamlined setup process.

· Does the Osmo Mobile 8 need balancing?

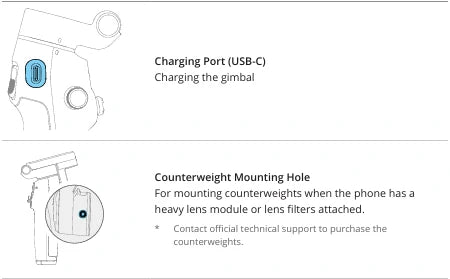

Osmo Mobile 8 uses a high-torque motor, so precise balancing isn’t required. When using the magnetic phone clamp, just roughly align it with the center of your phone and attach it. If your phone is heavy or you’ve added a filter, it’s recommended to use a counterweight.

For more information about the product, please refer to the user manual.
