A Beginner's Guide to Osmo Mobile 7/Osmo Mobile 7P

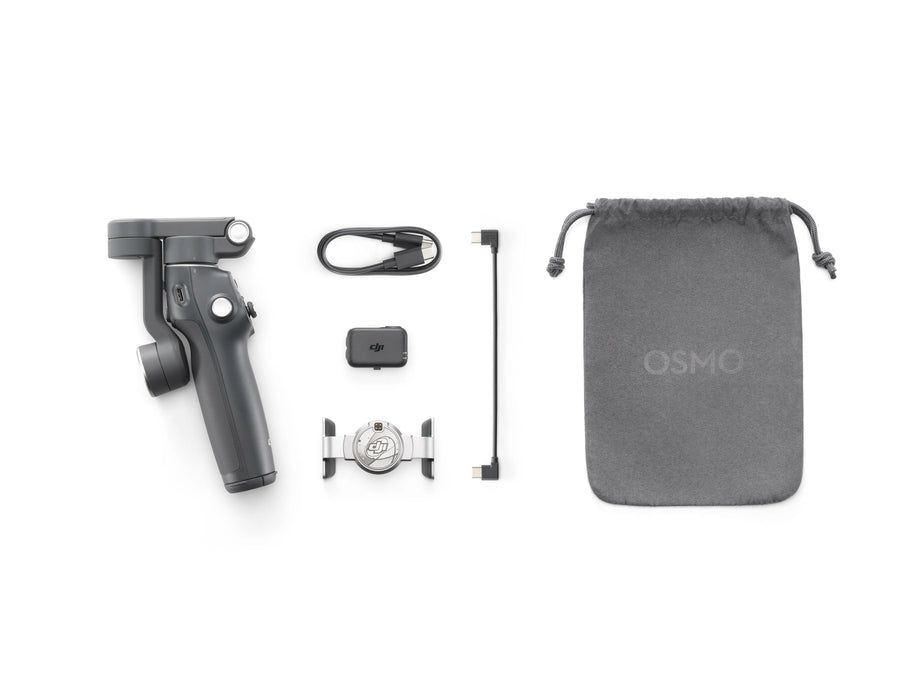

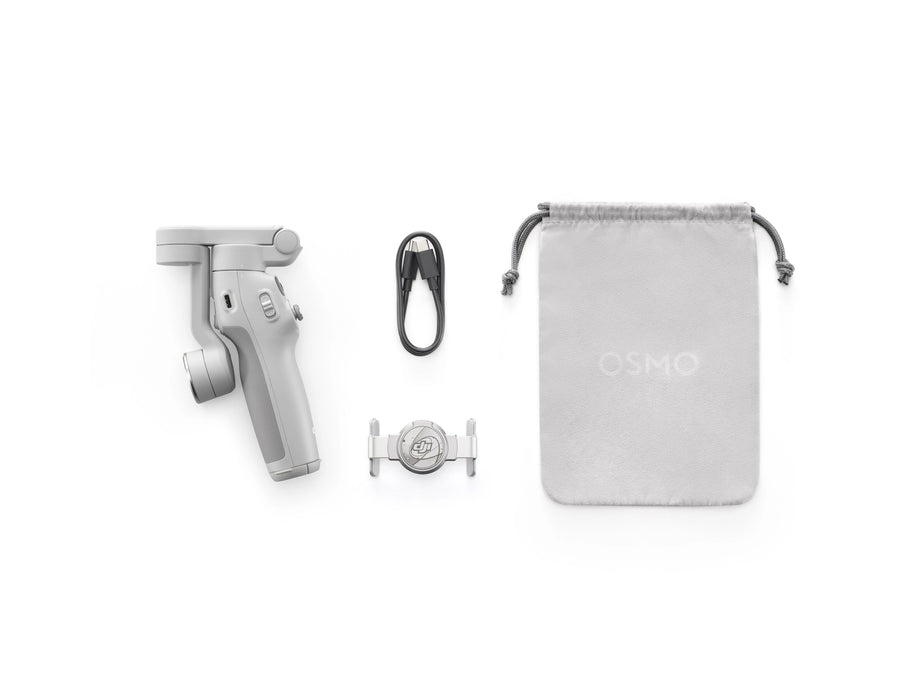

Unbox your package to discover the product and accessories. Ensure everything matches the checklist and is in perfect condition. Check out the image below for more details.

The Osmo Mobile 7 series is designed to seamlessly work with a wide range of popular smartphones. It is recommended to use smartphones with a width of 67-84 mm, thickness of 6.9-10 mm, and weight of 170-300 g.

Use the included power cable (USB-C to USB-C, 50 cm) to charge your gimbal until the battery level indicator turns off. In just 2.5 hours, the gimbal will be fully charged and ready to unleash your creativity!

• Osmo Mobile 7P

• Osmo Mobile 7

Unfold: Unfold the gimbal, and it will automatically power on, ready for action.

Fold: Press and hold the M button, and the gimbal will smartly rotate to a foldable position and power off.

• Osmo Mobile 7P

• Osmo Mobile 7

Download and run the DJI Mimo app, enable Bluetooth on your phone, and pair it with your Osmo Mobile 7 series device.

• Osmo Mobile 7P

• Osmo Mobile 7

A prompt will appear in DJI Mimo when new firmware is available. Follow the on-screen instructions to update the firmware.

- When there is firmware update available for the Multifunctional Module, install it to the phone clamp. During the update of the gimbal firmware via the app, the firmware for the Multifunctional Module will be updated accordingly.

- Ensure that the battery level indicator shows solid green before the update. Do not close DJI Mimo or switch it to the background during the update.

- If the update fails, restart DJI Mimo, reestablish the Bluetooth connection, and retry.

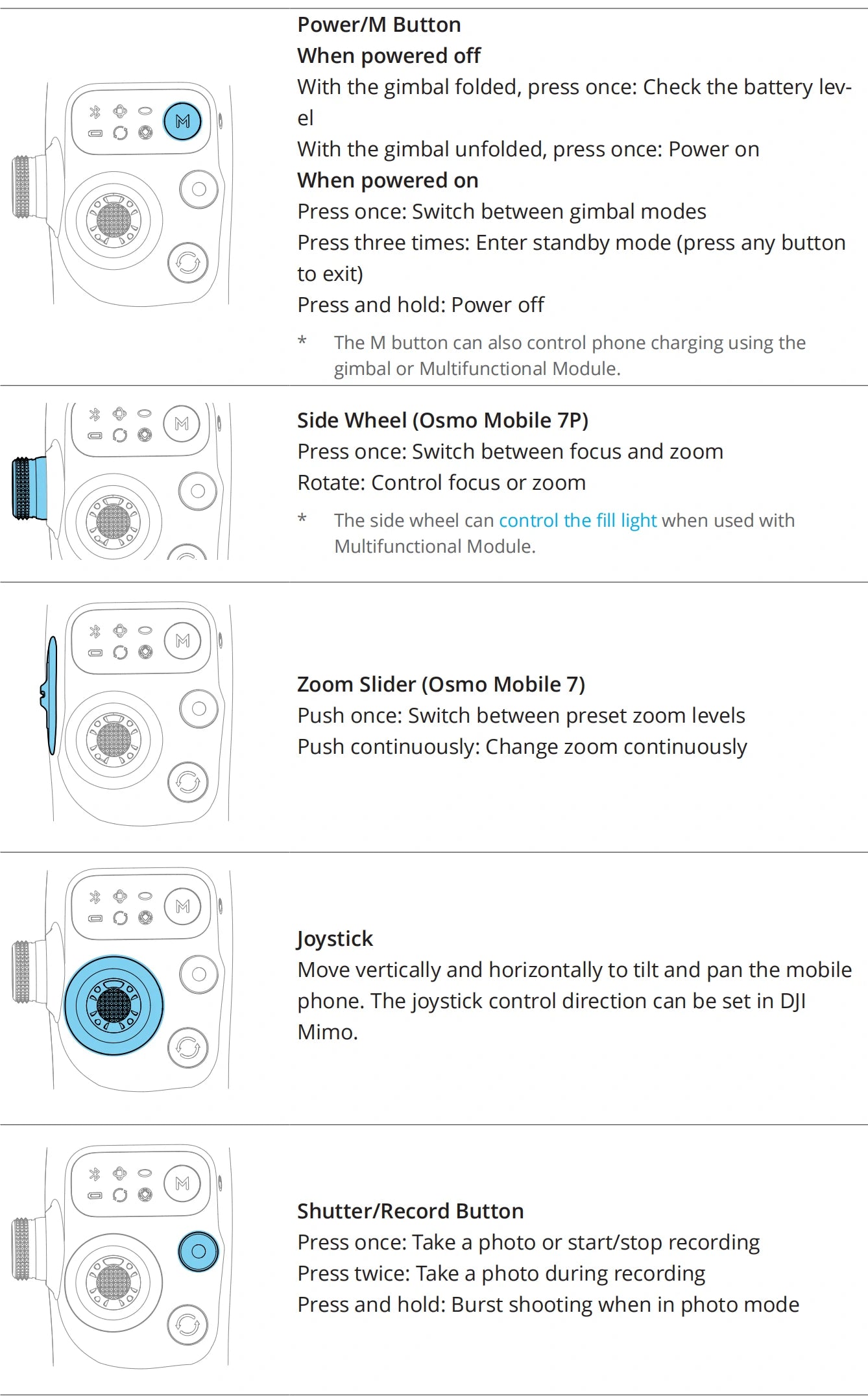

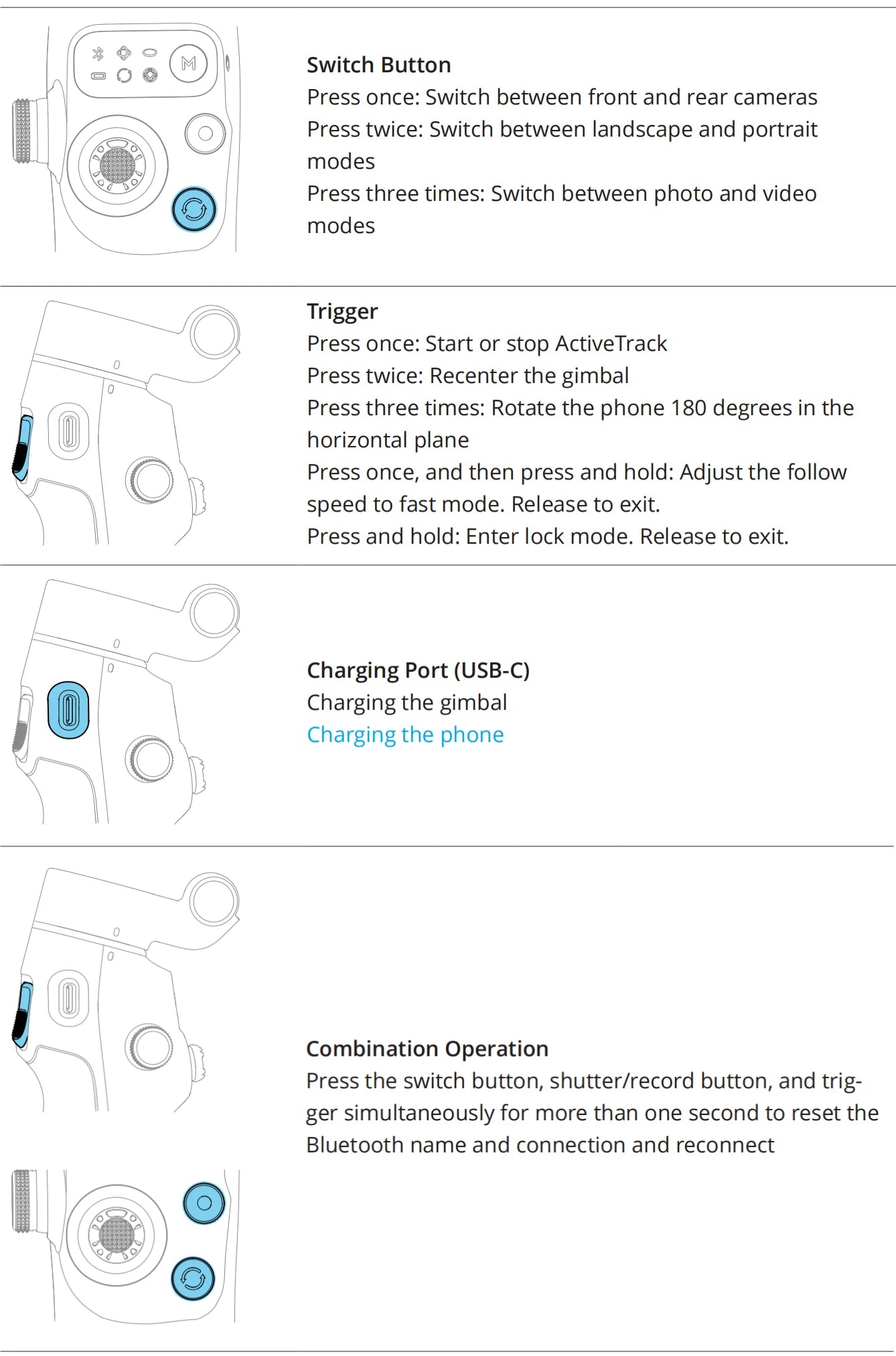

Refer to the following tutorial to learn more about the button function：

Upon powering on, the gimbal defaults to PTF mode. Press the M button once to switch to PF, FPV, or SpinShot modes. Quickly adjust the gimbal to match your needs and capture every exciting moment.

Enable ActiveTrack in the DJI Mimo app, and let the gimbal expertly control your phone to precisely track people or other subjects. Experience the freedom of capturing moments as if you have a personal photographer by your side, wherever you go!

Enhance your photography experience by pairing DJI Mimo with your Apple Watch. Effortlessly check the camera view, control the gimbal remotely, and enable ActiveTrack—all from your wrist. Enjoy unmatched convenience in capturing your moments.

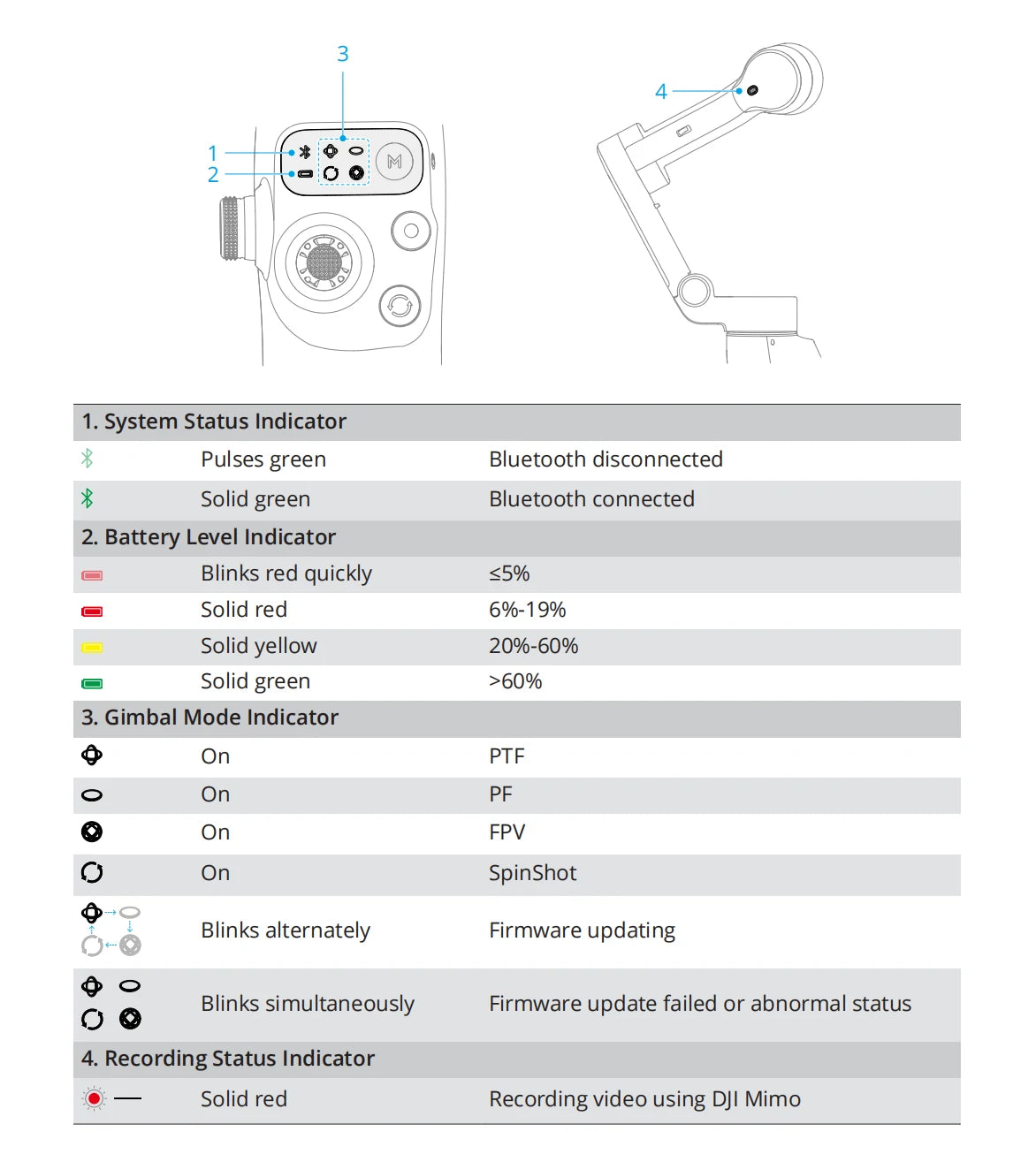

Mastering the meanings of various indicators is essential for optimal device performance. Discover a detailed guide to common indicator statuses and their meanings, ensuring you get the most out of your device!

Using with the Multifunctional Module unlocks enhanced lighting and audio recording, elevating the quality of your video recordings to new heights.

If you have purchased the Magnetic Quick-Release Mount, effortlessly attach your iPhone to the gimbal for a streamlined setup process.

• Are the included Power Cable (50 cm) and the Phone Charging/Audio Recording Cable (USB-C to USB-C, 15 cm) interchangeable?

No. They are not interchangeable for the following reasons:

1. The power cable lacks USB signal capability, making it unsuitable for audio recording.

2. The hardware design for charging the smartphone via the multifunctional module is different from that of the gimbal handle.

• In which apps can the Multifunctional Module enable intelligent tracking?

Unlock the power of intelligent tracking with the Multifunctional Module in these applications:

1. Your smartphone’s native camera app, including features like Cinematic mode on iPhones;

2. Live streaming platforms such as TikTok, Facebook, and Instagram;

3. Voice calls and video conferences;

4. Professional camera apps, including Blackmagic Camera and Protake.
