A Beginner’s Guide to DJI Mic 3

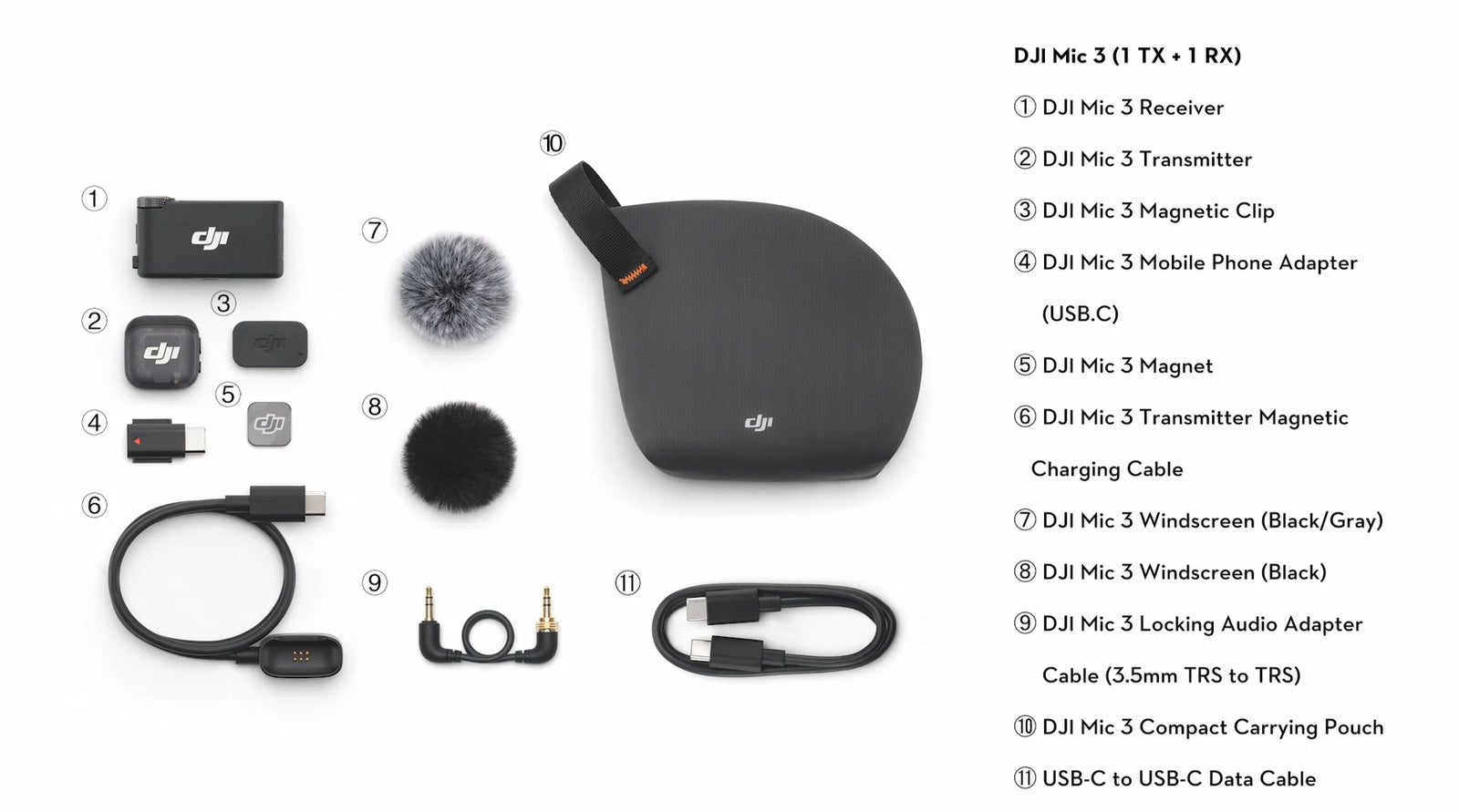

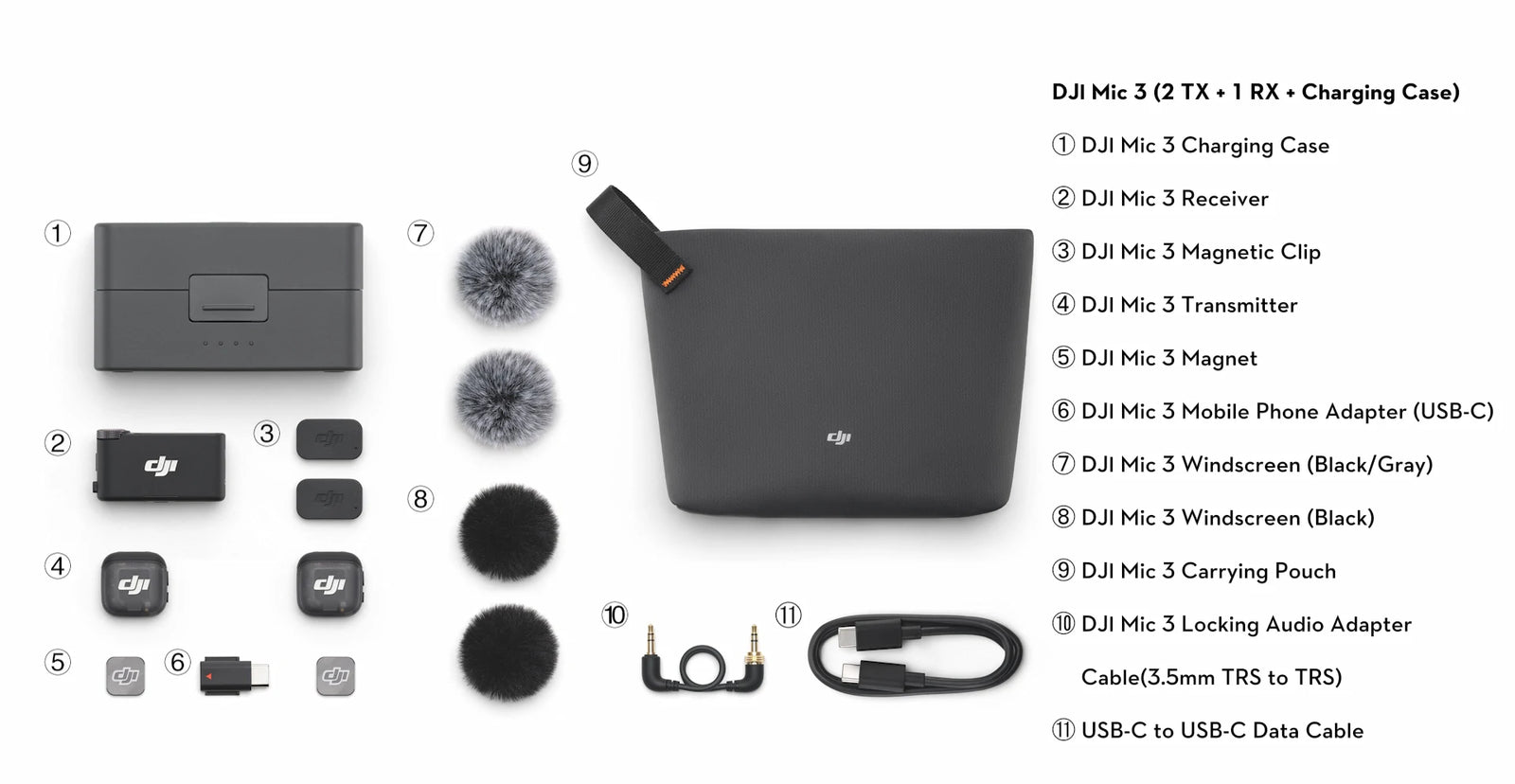

Unbox your package to discover the product and accessories. Ensure everything matches the checklist and is in perfect condition. Check out the image below for more details.

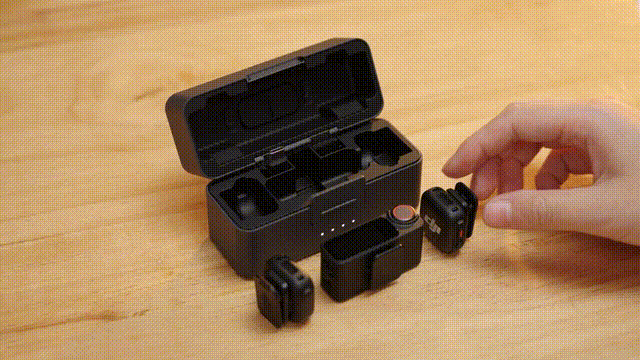

▸ If you purchase the 2TX+1RX set, place the transmitters and receiver into the charging case to charge them all at once.

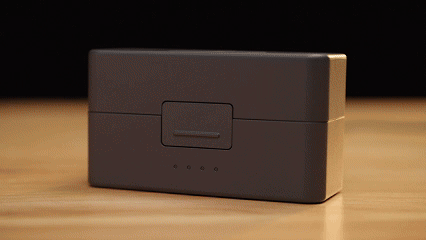

▸ If the charging case is low on power, you can charge it using the included USB-C cable.

▸ A single transmitter can be charged using the magnetic charging cable.

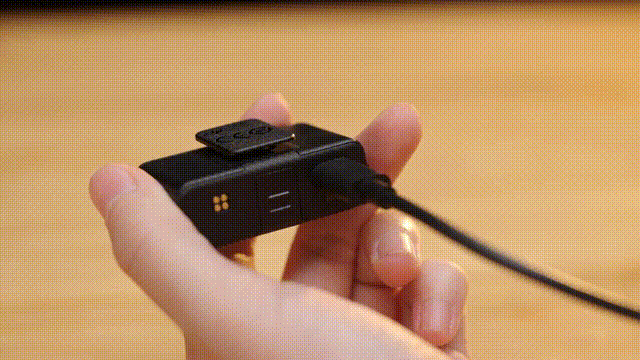

▸ A single receiver can be charged using a USB-C cable.

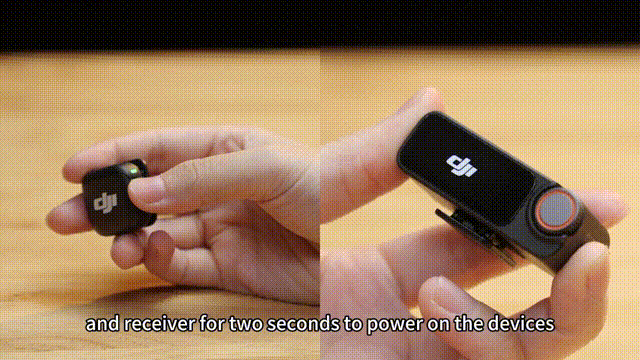

Press and hold the power button on the side of the transmitter or receiver for two seconds to power it on or off.

For first-time use, complete the language and time settings by following the on-screen instructions.

The transmitters and the receiver in the package are linked upon shipment. If the transmitter and receiver are disconnected, refer to the following method for linking:

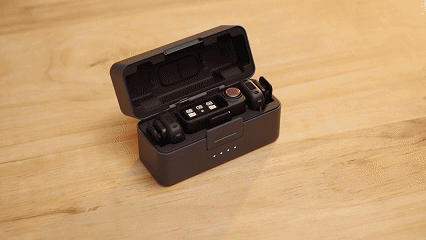

▸ Place the transmitters and the receiver in the charging case to link them automatically.

▸ Swipe

down on the receiver screen to enter the control menu. Tap Device Linking to add the transmitter. Press and hold the linking button on the transmitter to link the receiver. When the system status LED is solid green, the transmitter is linked successfully with the receiver.

After connecting the devices to the DJI Mimo app, you can update the firmware or adjust parameters via DJI Mimo.

DJI Mic 3 supports connection via phone adapter or Wi-Fi. Please refer to the following.

▸ via Phone Adapter

▸ via Wi-Fi

Adjusting Parameters

In the device settings page of DJI Mimo, you can view connected devices and their battery status, or adjust parameters.

▸ Quick Actions with Dial: Use the dial to quickly lock, unlock, and adjust gain settings.

▸ Single Transmitter Control: Tap the transmitter volume bar or use the dial to enter the dedicated control interface to manage internal recording, mute, noise cancelling, or other functions.

▸ Multi-Transmitter Control: When multiple transmitters are linked to one receiver, swipe up on the home screen of the receiver to simultaneously enter the control interface for all transmitters in the group, effortlessly managing recording and noise cancelling for all transmitters.

Updating Firmware

After
connecting to the app for the first time, a notification will appear at the top of the app’s homepage when new firmware is available. Once your device is connected, tap the prompt to update the firmware.

▸ Charging Case Included

▸ Charging Case Not Included

In outdoor or windy environments, use the windscreen to reduce wind noise and improve audio quality.

The transmitter can be attached to clothing using a clip or a magnet.

DJI Mic 3 supports multiple transmitters or receivers connection, with up to four transmitters or eight receivers in a group.

Using with a Phone

DJI Mic 3 supports connecting to mobile phones via phone adapter or Bluetooth.

▸ via Phone Adapter

▸ via Bluetooth

Using with a Camera

DJI Mic 3 can be connected to a camera via audio cable or camera adapter.

▸ via Audio Cable

▸ via Camera Adapter

Using with a Computer

Connect the receiver to the computer using the provided charging cable or adapter and set the audio input options on the computer. The transmitter can then be used as an external microphone. (The video uses the DJI Mic Mini as an example.)

Transmitter Directly Connected to DJI Filming Devices

The transmitter can connect to DJI filming devices via Bluetooth.

Watch tutorial videos to master more practical tips for DJI Mic 3.

Channel Adjustment: Choose Mono, Stereo (dual-channel), or Quadraphonic (four-channel) recording based on your needs. In Quadraphonic mode, four transmitters can be used simultaneously, with each audio track recorded separately for easier post-production editing.

Dual-File 32-bit Float Internal Recording: When this feature is enabled, the transmitter records audio in 32-bit float format, allowing for greater flexibility in post-production editing.

Adaptive Gain Control: The Automatic mode effectively prevents audio clipping, suitable for high-volume scenarios; the Dynamic mode automatically adjust gain in response to volume changes, ensuing consistent loudness.

Lossless Audio Transmission: When enabled, it allows for lossless audio transmission, preserving higher sound quality.

Timecode: It is used to synchronize audio and video, making it easier to align multiple video angles and audio tracks during post-production.

1. Do I need to activate DJI Mic 3?

A: DJI Mic 3 is ready to use without activation. You can scan the QR code on the package to register and enjoy one additional year of warranty service.



2. What is the maximum transmission distance between the transmitter and the receiver of DJI Mic 3?

A: 400 m (measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with Lossless Audio off, in an open, unobstructed environment free of interference).
